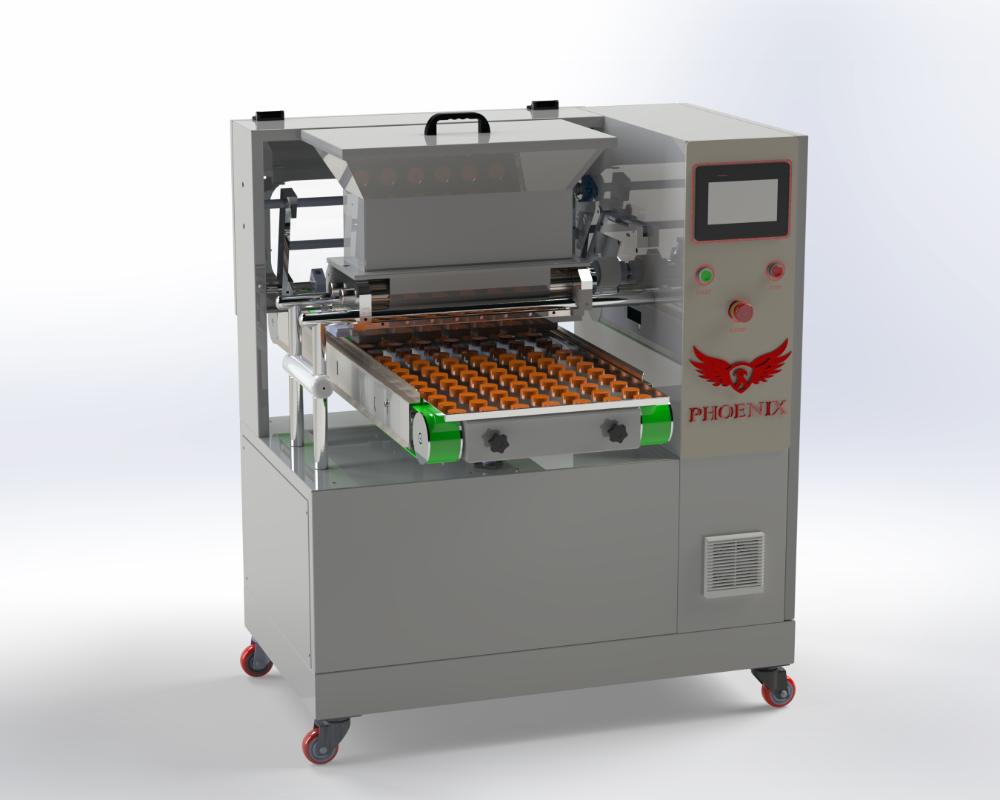

cookies dropping machine

ELECTRICAL SPECIFICATIONS:-

Power consumption – 3.0KW\ 4 HP\ 415VAC.

Using smart servo based PLC control system.

Conveyor movement 0.25 HP motor with gear box. (SERVO MOTOR)

Roller movement 1 HP heavy duty motor with gear box.( SERVO MOTOR)

Wire cut and twisting 0.75 HP motor with Gear Box .SERVO MOTOR

Table up and down 1 HP heavy duty motor with gear box. SERVO MOTOR

Safety sensors and homing as to be installed.

MECHANICAL SPECIFICATIONS:-

Wire cut – 45 strokes per minute.

Depositor – 35 strokes per minute (USING SERVO)

Operating width / Tray width: 18″ (450 mm) – 7 Nozzles

Two wire cut dies and one depositor die are included with the machine.
